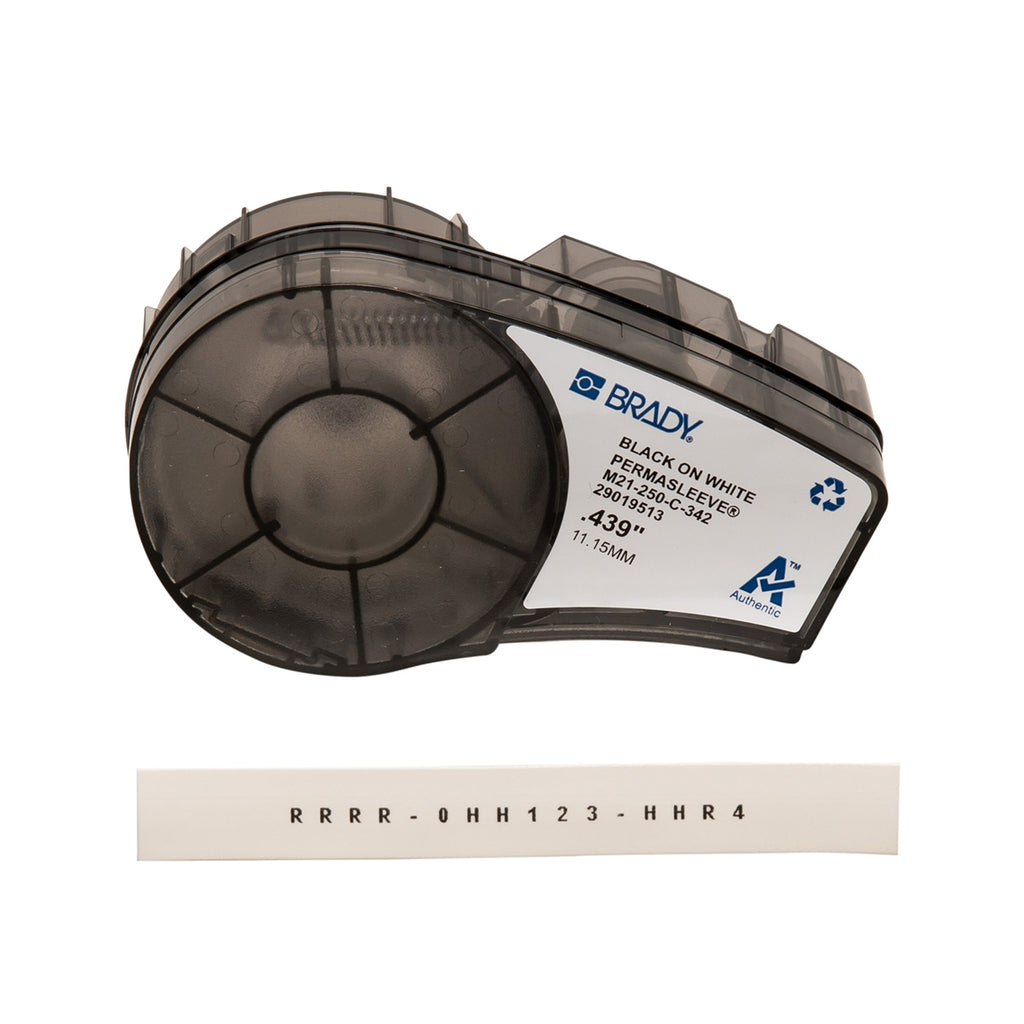

PermaSleeve Heat Shrink Wire and Cable Labels with Ribbon for M210, M211, BMP21-PLUS Printers - 1/4" Dia, Black on White

Designed for rigorous wire marking applications, PermaSleeve® PS Heat Shrink Polyolefin (B-342) sleeves combine speed, ease of use, and permanence to create high quality labeling.

• Industrial Grade – Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
• Superior Aesthetics – Crisp, clear identification resistant to abrasions and fading
• Certifications – UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
• 3:1 heat shrinking sleeve designed for 16 - 8 gauge (diameter 0.094 - 0.215 inches, 2.4 - 5.5 mm)
• For material specific performance and properties, please refer to the Technical Data Sheet (TDS)

Specifications

Key Characteristics	Catalog Page #	106
	Product Number	110925
	UPC	662820899952
	Applications	Cable & Wire Marking, Panel Labeling
	UOM	Cartridge of 7 Feet
	Quantity per Row	1
	Trade Name	PermaSleeve®
	Brand Name	Brady®
	Ribbon Series	R4300
	Country of Origin	Mexico
	HTS Code (Harmonized Tariff Schedule)	8443.99.2550
	ECCN (Export Commodity Control Number)	EAR99

Dimensions	Dimensions	0.439 in H
	Height	0.439 in
	Roll Length	7 ft
	Sleeve Size	0.25 in Dia x 7 ft L
	Recovered Diameter	0.25 in
	Web Width	0.439 in
	Diameter as Supplied	0.25 in

Material Characteristics	Material Number	B-342 (View Technical Data Sheet)
	Material	Heat-shrink Polyolefin
	Material Properties	Flame-retardant, Heat-shrinkable, Self-extinguishing
	Label Properties	Heat Shrink
	Finish	Matte
	Color	Black on White
	Ribbon Color	Black
	Tape Color	White
	Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
	Shrink Ratio	3:1
	Service Temperature Range °F	-67 °F - 275 °F
	Minimum Service Temperature °F	-67 °F
	Minimum Service Temperature °F	-67 °F
	Maximum Service Temperature °F	275 °F

Product Features	Application	Electrical Labeling, Wire and Cable Labeling
	Label/Media Format	Label/Media in Cartridge with Ribbon

Printing Specifications

Print Technology

Thermal Transfer

Compatibility	Printer Compatibility	BMP21-LAB, BMP21-PLUS, M210, M210-LAB, M211
	Wire Diameter Range	0.094 in to 0.215 in
	Wire Gauge Range	16 AWG - 8 AWG

Compliance	UNSPSC	39131502
	California Prop 65	WARNING: Cancer - www.p65warnings.ca.gov
	RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
