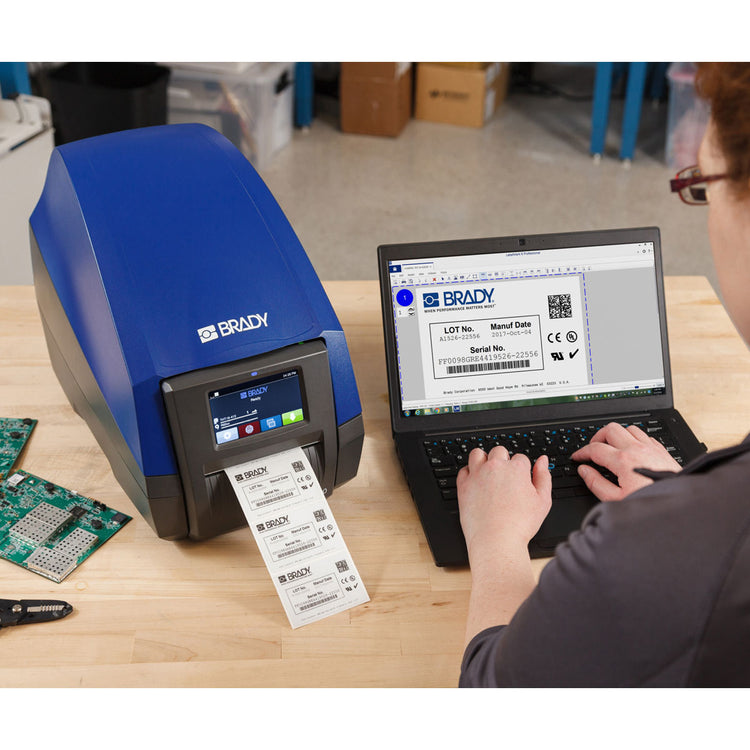

Brady Printer i5100 600dpi Industrial Label Printer with Product and Wire ID Software Suite

Availability: Out Of Stock

₦0.00
Brady Printer i5100 600dpi Industrial Label Printer with Product and Wire ID Software Suite Overview The Brady Printer i5100 Industrial Label Printer provides the fundamental printing capabilities for the high-mix and high-volume work you need...
Request for Quote

Product code:

149455

Brady Printer i5100 600dpi Industrial Label Printer with Product and Wire ID Software Suite

Overview

The Brady Printer i5100 Industrial Label Printer provides the fundamental printing capabilities for the high-mix and high-volume work you need to get done every day.

  • Change printer settings easily with the intuitive touchscreen
  • Complete label set up faster with smart cell technology that allows the materials, printer and software to communicate
  • Change out materials quickly with specially designed materials that easily lock into place
  • Connect easily with a variety of connection ports
  • Keep the printer running smoothly with interchangable rollers
  • Ships with Brady Workstation Product and Wire ID Software Suite with built-in templates for fixed text or free-form label design options
  • Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment.

Specifications

Key Characteristics Catalog Page #  140
Product Number 149455
UPC 754473605322
Applications  Aerospace, Arc Flash Labels, Asset Tracking, Automotive, Barcode Labeling, Cable & Wire Marking, Circuit Board Marking, Data Center Labeling, Electronics Manufacturing, General & Industrial ID, Government & Defense, Laboratory ID, Laboratory ID - Slide Label, Manufacturing, Military, Panel & Push Button Labels, Panel Manufacturing, Rating Plate ID, Ship/Boat/Marine Industries, Single and Double sided sleeve printing
UOM Each
Trade Name BradyPrinter i5100
Brand Name Brady®
Country of Origin  Germany
HTS Code (Harmonized Tariff Schedule)  8443.32.1050
ECCN (Export Commodity Control Number)  EAR99
Dimensions Dimensions 12.5 in H x 9.5 in W x 17.2 in D
Height 12.5 in
Width 9.5 in
Depth 17.2 in
Core Diameter 3 in
Display Size 2.0 x 3.6 in
Weight 13.6 lb
Material Characteristics Color Blue, Gray
Product Features Application  Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling
Connectivity Options  Bluetooth, Ethernet, Serial RS232, USB 2.0, USB Host
Cut Options Available Upgrade to Auto Cutter (through Brady tech Repair)
Cutter Type None
Display Type Color LCD Touch Screen
Keyboard Type None
Media Sensor Type Black Mark, Gap Sensor, Notch, Ribbon End
Memory 256 MB RAM, 50 MB IFFS Flash
Mode of Operation  PC Connect
Stand Alone Printing  PC connected & Stand-alone
Plug Type IEC Type B
Power Supply Voltage 100 - 240 V @ 50 - 60 Hz
Auto Shut-Off / Power Conserve Yes
User Interface Type PC, Touch Screen
Battery Type Lithium-manganese Battery
Operating System Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Ribbon Ink Wind Direction  Side In/Side Out
Supply Remaining Gauge  Yes
Printing Specifications Automatic Label Set Up  Yes
Barcode Capability Barcode Capable
Barcode Symbologies - 2D Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code
Barcode Symbologies - Linear Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0
Calibration Required?  Yes
Color Printing Capability Single Color
Font Styles Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold
Maximum Labels per Day  5000
Maximum Print Speed 5.9 in/s
Print Resolution 600 dpi
Print Technology Direct Thermal, Thermal Transfer
Media Sensor Adjustment Yes
On Screen Indicators Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Print Mode: Brady or Standard, Ribbon and label part number recognition, Ribbon Remaining, SD Memory Card inserted, Sensor: selection and positioning, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity
Compatibility Compatible Media  2HT-, 3HT-, 3PS-, PS-, PSL-, THT-, THTCLP-, THTEP-, THTFP-, THTFT-, XTHT-
Label Material Types Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate
Continuous & Die-Cut Materials Supported Continuous and Die-cut
Custom Media Parts Available Yes
Custom Labels Available Yes
Maximum Label/Tape Width 4.16 in
Maximum Print Width 4.16 in
Maximum Printed Label Length 6.6 ft
Minimum Label Length  0.20 in
Minimum Liner Width 0.36 in
Maximum Liner Width 4.4 in
Software Compatibility Brady Workstation, Windows based driver for 3rd party software use
What's Included Includes (1) Auto-Detect Roll Holder, (1) Brady Workstation Product and Wire ID Suite (BWS-PWID-EM), (1) BradyPrinter i5100 Printer 600dpi (149455), (1) Product CD with Manuals & Drivers, (1) Ribbon Takeup Spindle, (1) U.S. Power Cord, (1) USB Cable
Warranty 5 Years
Warranty (North America) 5 Years
