KNIPEX Snipe Nose Side Cutting Pliers 26 22 200

Availability: In Stock

₦0.00
Hurry up! only 23 products left in stock!
26 22 200 Snipe Nose Side Cutting Pliers (Stork Beak Pliers)       Elastic tips: dimensionally stable even when twisted Distortion-tolerant, elastic precision tips Half-round, long, tapered jaws With cutting edges for soft, medium-hard and...
Request for Quote

Product code:

26 22 200

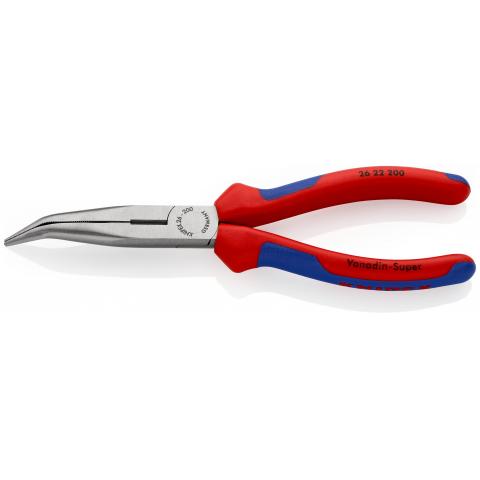

26 22 200 Snipe Nose Side Cutting Pliers (Stork Beak Pliers)





  • Elastic tips: dimensionally stable even when twisted
  • Distortion-tolerant, elastic precision tips
  • Half-round, long, tapered jaws
  • With cutting edges for soft, medium-hard and hard wire
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
  • 40° angled jaws
  • Vanadium electric steel, forged, multi stage oil-hardened



Technical attributes
Article No.
26 22 200
EAN
4003773023135
Pliers
black atramentized
Head
polished
Handles
with multi-component grips
Weight
197 g
Dimensions
200 x 53 x 19 mm
Standard
DIN ISO 5745
Reach
no
RohS
no
Cutting capacities medium hard wire (diameter)
Ø 3.2 mm
Cutting capacities hard wire (diameter)
Ø 2.2 mm
Jaw thickness (joint) (T1)
9.5 mm
Tips width (W4)
3.0 mm
Tips thickness (T2)
2.5 mm
Gripping surface length (L4)
23.0 mm
Jaw length (L3)
73.0 mm
Head width (W3)
18 mm

Ideal for use in the electrical, motor and plumbing professions

Pliers for gripping and holding – and for powerful cutting

The forged and oil-hardened snipe nose side cutting pliers from Knipex are primarily used for installation and assembly work and for the alignment of components. In addition to the typical tasks for needle nose pliers, they can also be used for powerful cutting. Their cutting edges are shaped to produce a bite type cut – and they have been induction hardened, so that the Knipex 26 22 200 can even be used to cut hard wire.

Strong when cutting – inherently stable also when twisted

The precision tips at a 40° angle made of vanadium electric steel are elastic and stable when twisted. This allows the manual force deployed to be well measured – forcefully where necessary. The position of the cutting edges near the joint is advantageous for the transmission of force. Cutting capacities of up to Ø 3.2 mm for medium-hard wire and up to Ø 2.2 mm (hard wire) are achieved.

Poorly accessible areas can be reached easily with these pliers

The round nose pliers from Knipex have very long tips that are also angled at the front. This enables the user to grip low-lying, difficult to reach components accurately and powerfully using these pliers. The benefits of these snipe nose side cutting pliers will be appreciated as soon as you have mastered your first challenge with these pliers from Knipex – such as attaching a hose onto a difficult to reach nozzle.
