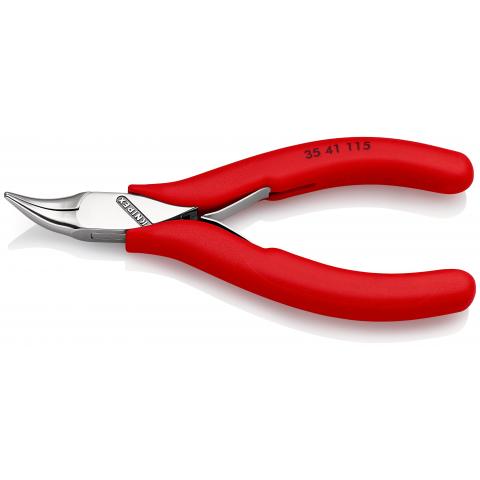

35 41 115 Electronics Pliers
- Precision pliers for fine assembly work, e g. in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- For gripping, holding and bending
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Soft transitions; no sharp edges
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
- Ball bearing chrome steel, oil hardened
Technical attributes
Article No.
35 41 115
EAN
4003773082248
Head
mirror polished
Handles
with multi-component grips
Weight
55 g
Dimensions
115 x 66 x 14 mm
Standard
DIN ISO 9655
Reach
no
RohS
no
Jaw length (B)
22.5 mm
Jaw thickness (joint) (D)
6.5 mm
Tips width (E)
2.0 mm
Tips thickness (F)
1.0 mm
Head width (A)
11.0 mm
Dimensions angle
45 °
