Overview

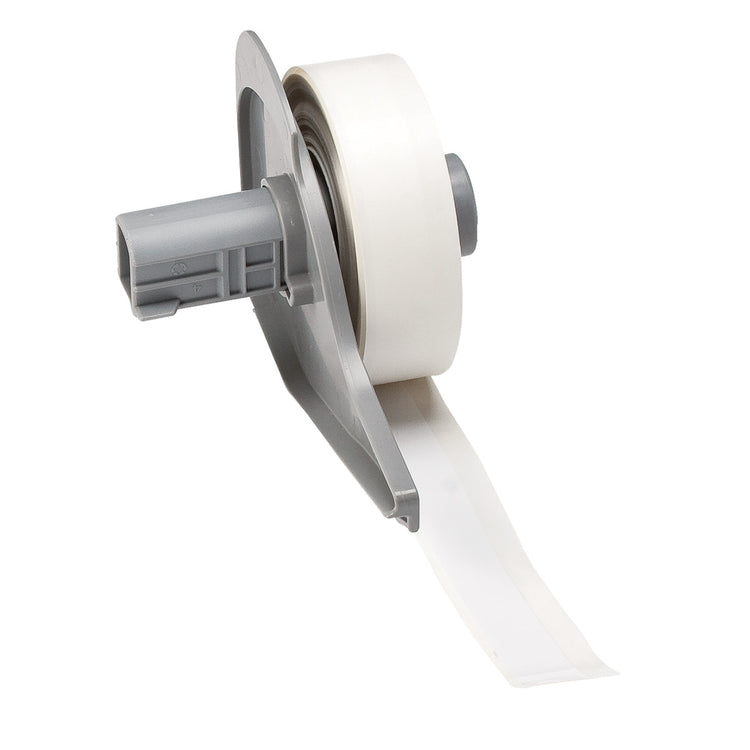

Labels for the BMP™71 Label Printer. Please Note: This material is UL, CSA & AGA approved with its respective ribbon. See the Recommended Ribbon Series for the appropriate ribbon to use.
Specifications
| Key Characteristics | Article Number | 115136 |
| Order Reference | M71C-500-423 | |
| Total Qty per Pack | 1 Roll(s) / Box | |
| Minimum Order Quanitity | 1 | |
| QTY. per Row | 1 | |
| Application(s) | Barcode labelling, Circuit board labelling, Component and equipment labelling, General identification, Inventory and inspection labelling | |
| Quantity | 1 | |
| Board Application | After Process, Through Hole Technology - Top | |
| Brand | Brady® | |
| Trade Name | WorkHorse® | |
| Ribbon Series | M71-R6000HF | |
| Country of Origin | MX |
| Dimensions | Size - Length (m) | 15.24 m |
| Size - Width (mm) | 12.70 mm | |
| Roll Length | 15.24 m | |
| Web Width (mm) | 19.05 mm | |
| Dimensions | 12,70 mm (W) x 15,24 m (L) |
| Material Characteristics | Brady Material No. | B-423 (View Technical Data Sheet) |
| Brady Material Type | Polyester | |
| Material Properties | Halogen-free | |
| Thickness (mm) | 0.076 mm | |
| Colour | White | |
| Environment | Autoclave, Freezer, Hot Water Bath (100°C) | |
| Max. Service Temp. °C | 110 °C | |
| Min. Service Temp. °C | -70 °C | |
| Adhesive (Y/N) | Yes | |
| Adhesive | Permanent Acrylic | |
| After Process | Yes, this material will work with this application | |
| Finish | Gloss | |
| Performance Characteristics | Abrasion resistance, Fuel/Oil resistance, High heat resistance, Low temperature resistance | |
| Surface | For smooth surfaces | |
| Through Hole Technology | Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No | |
| Label Properties | Aggressive Adhesive, Harsh Environment, Heat Resistant, Permanent Adhesive | |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Product Features | Label/lMedia Format | Roll |
| Printing Specifications | Print Technology | Thermal Transfer |
| Max. Characters per Line | 50 | |
| Max. Lines of Text | 5 | |
| Smart Cell | Yes |
| Compatibility | Printer Compatibility | BMP71 |
| Recommended Ribbon | M71-R6000 |
| Compliance | UNSPSC | 55121612 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 | |
| REACH SVHC Status | Part does not contain an SVHC | |
| REACH Candidate List Date | 17 January 2023 | |
| Approval/Compliance | UL Recognised; CSA Accepted; Halogen Free (DIN VDE 0472/part 815) Approvals are for White material only |
