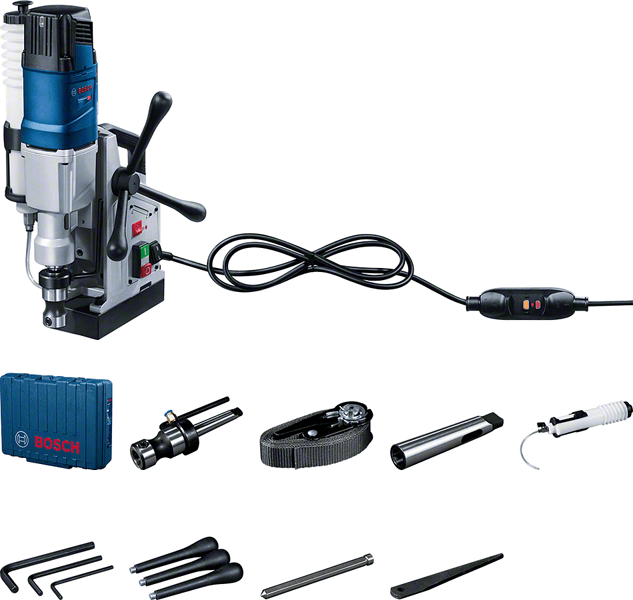

Precise, efficient and convenient - the ideal solution for metal drilling

• Convenient, durable, highly efficient and safe: Laser technology offers a fast target set-up, powerful motor for durable and efficient precise drilling, power supply cut-off system to prevent electric shock
• Smart HMI system: Service display alert for preventive maintenance (carbon brush change) and load alert indicator for a long tool lifetime
• Ideal for tough metal core drilling: High magnetic force gives a strong support to the drilling

Technical data

Additional data
Rated input power	1,200 W
Weight	14.7 kg
No-load speed, 1st gear	50 – 250 rpm
No-load speed, 2nd gear	100 – 510 rpm
Drill spindle connecting thread	MT 2 - DIN 228
Tool dimensions (width)	196 mm
Tool dimensions (length)	274 mm
Tool dimensions (height)	444 mm

Drilling range
Drilling diameter in steel	1.5 / 50 mm

Noise/vibration information
Sound pressure level	90 dB(A)
Sound power level	110 dB(A)
Uncertainty K	3 dB

Show more

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
